Introduction
In the modern logistics and transportation industry, aluminum alloy tanker semi-trailers have become the gold standard for fuel and liquid cargo transport. Their lightweight construction, superior corrosion resistance, and excellent payload capacity make them an ideal choice for fleet operators worldwide.

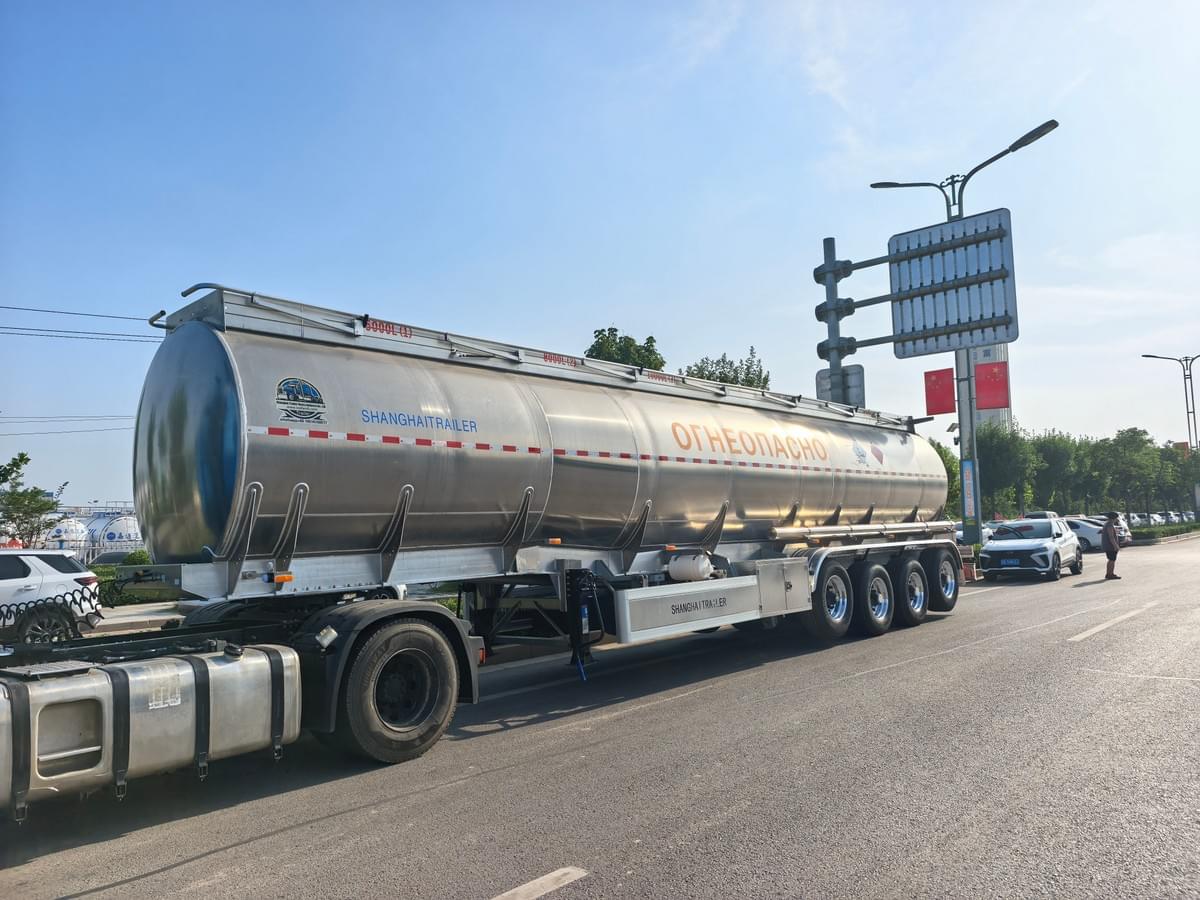

Today, we’re taking an in-depth look at a 40m³ aluminum alloy tanker semi-trailer with a 4-axle configuration — a powerhouse of engineering designed for maximum efficiency and safety.
Key Specifications
Tank Capacity:40 cubic meters
Overall Dimensions:11,300mm × 2,500mm × 3,500mm
Curb Weight:Approx. 7.3 tons
Axle Configuration:4 axles (10T each, ZONXIN disc brake)
Suspension:ZONXIN air suspension
Tires:Linglong 385/65R22.5 (8 + 2 spares)
Material:Aluminum alloy
Tank Body Thickness:5.5mm
Anti-Surge Baffle Thickness:5.5mm
End Plate Thickness:7mm
Compartments:5 (5m³ + 8m³ + 10m³ + 9m³ + 8m³)
Chassis & Running Gear
Axle & Braking System
This trailer is equipped with four ZONXIN 10-ton disc brake axles, featuring a 1st and 4th axle lift system for improved maneuverability and reduced tire wear during empty runs. The braking system incorporates KORMEE EBS (Electronic Braking System) in a 4S/2M configuration, ensuring precise, responsive braking under all load conditions. With 8 dual-chamber air brakes and WABCO relay valves, safety is never compromised.
Suspension
The ZONXIN air suspension system provides a smoother ride, better load distribution, and reduced road damage — a critical advantage when transporting sensitive liquid cargoes.
Wheels & Tires
•Tires: Linglong brand 385/65R22.5 — 8 mounted + 2 spares = 10 total
•Rims: Aluminum alloy 11.75” — 8 mounted + 2 spares = 10 total
The large-diameter, low-profile tire configuration offers excellent stability and a lower center of gravity.
Tank Body Design
Material & Construction
Built entirely from high-grade aluminum alloy, this tanker delivers exceptional strength-to-weight ratio. The tank body and anti-surge baffles are 5.5mm thick, while the end plates are reinforced to 7mm for maximum structural integrity.
Compartment Configuration
The 40m³ tank is intelligently divided into 5 compartments:
Compartment
Volume
Manhole Position
1 5m³ Center
2 8m³ Center
3 10m³ Center
4 9m³ Center
5 8m³ Center
This multi-compartment design allows for simultaneous transport of different fuel grades or liquid products, maximizing operational flexibility.
Tank Shape
The tank features a front-tapered, rear-straight barrel design with a circular cross-section and gooseneck barrel with main beam frame structure. This aerodynamic profile reduces drag and improves fuel efficiency for the tractor unit.
Safety & Operational Features
Manholes & Venting
•5 European-standard manhole covers, each positioned at the center of its respective compartment
•Each manhole includes a built-in breathing valve for pressure regulation and vapor recovery
Discharge System
•5 × 4-inch aluminum alloy ball valves — one per compartment
•All discharge lines converge to a single 3-inch male coupling with end cap, located in the right-side mid-mounted valve box
•5 × 4-inch aluminum alloy emergency shut-off valves (subsea valves) for immediate flow isolation in emergencies
Valve & Tool Boxes
•Valve box: 1 aluminum box, right-side mid-mounted
•Tool box: 1 aluminum box, left-side mid-mounted
Discharge Hoses & Fittings
•Discharge hose boxes: 2 stainless steel boxes, 6-meter specification
•Discharge hoses: 2 hoses, 6-meter specification (5.5-meter actual length)
•Discharge hose couplings: 4 × 3-inch aluminum alloy couplings
Coupling & Support Equipment
Kingpin:90# / 50# assembly type
Landing Gear:28-ton single-action external type
Electrical Socket:Additional 15-pin socket (50# / 90#)
Electrical & Air Lines:Mounted beneath the front end plate baffle
Spare Tire:2 units
Spare Tire Rack:1 unit
Ladder:Rear-mounted
Tractor Unit Compatibility
This trailer is designed to pair with standard tractor units with the following critical dimensions:
Dimension Measurement
A 2,800mm
B 2,200mm
C 1,300mm
D 5,300mm
Finish & Branding
•Color: Natural aluminum finish (no paint required — the alloy’s natural oxide layer provides protection)
•Logo: None (clean, professional appearance)
Why Choose This 40m³ Aluminum Alloy Tanker?
1.Lightweight: At just ~7.3 tons curb weight, it maximizes payload capacity within legal limits.
2.Corrosion Resistant: Aluminum alloy naturally resists fuel and chemical corrosion, extending service life.
3.Multi-Product Capability: 5 independent compartments enable diversified cargo operations.
4.Advanced Safety: EBS braking, emergency shut-off valves, and dual-chamber air brakes provide comprehensive protection.
5.Cost-Efficient: Lower fuel consumption for the tractor, reduced maintenance, and higher resale value.
Conclusion
This 40m³ aluminum alloy tanker semi-trailer represents the pinnacle of modern tank trailer engineering. With its robust 4-axle disc brake configuration, intelligent 5-compartment design, and premium components from ZONXIN, KORMEE, WABCO, and Linglong, it delivers unmatched performance, safety, and versatility for professional fuel and liquid transport operations.
Whether you’re expanding your fleet or upgrading existing equipment, this trailer is engineered to keep your business moving forward — efficiently, safely, and profitably.
