Factory Direct 17.2m Long 4-Axle Box Semi-Trailer 125 Cubic Meter Curtain Side Trailer with 950GSM T
Load Capacity：30T
Certification：CE, ISO9001, CCC
Wheel Base：7000-8000mm
Tread：1820mm
Types of Suspension Systems：Air Suspension
Shape：Van-type
Axle Number：4
Tire Number：12 PCS
Specification：17000*2500*4000 mm
Production Capacity：250 Units-300 Units /Per Month
Certification：CE, ISO9001, CCC
Wheel Base：7000-8000mm
Tread：1820mm
Types of Suspension Systems：Air Suspension
Shape：Van-type
Axle Number：4
Tire Number：12 PCS
Specification：17000*2500*4000 mm
Production Capacity：250 Units-300 Units /Per Month
More Details
4-axle curtain-side trailer configuration
Length, width, and height: 17200mm * 2550mm * 4050mm
Configuration: 350mm high beam, 12mm upper wing, 14mm lower wing, 8mm uprights
SAF 11.5-ton capacity x 4
Tires: 245/70R17.5, 16-gauge
Rim: 7.0, 16-gauge
Suspension: Air suspension
1.4-axle lift

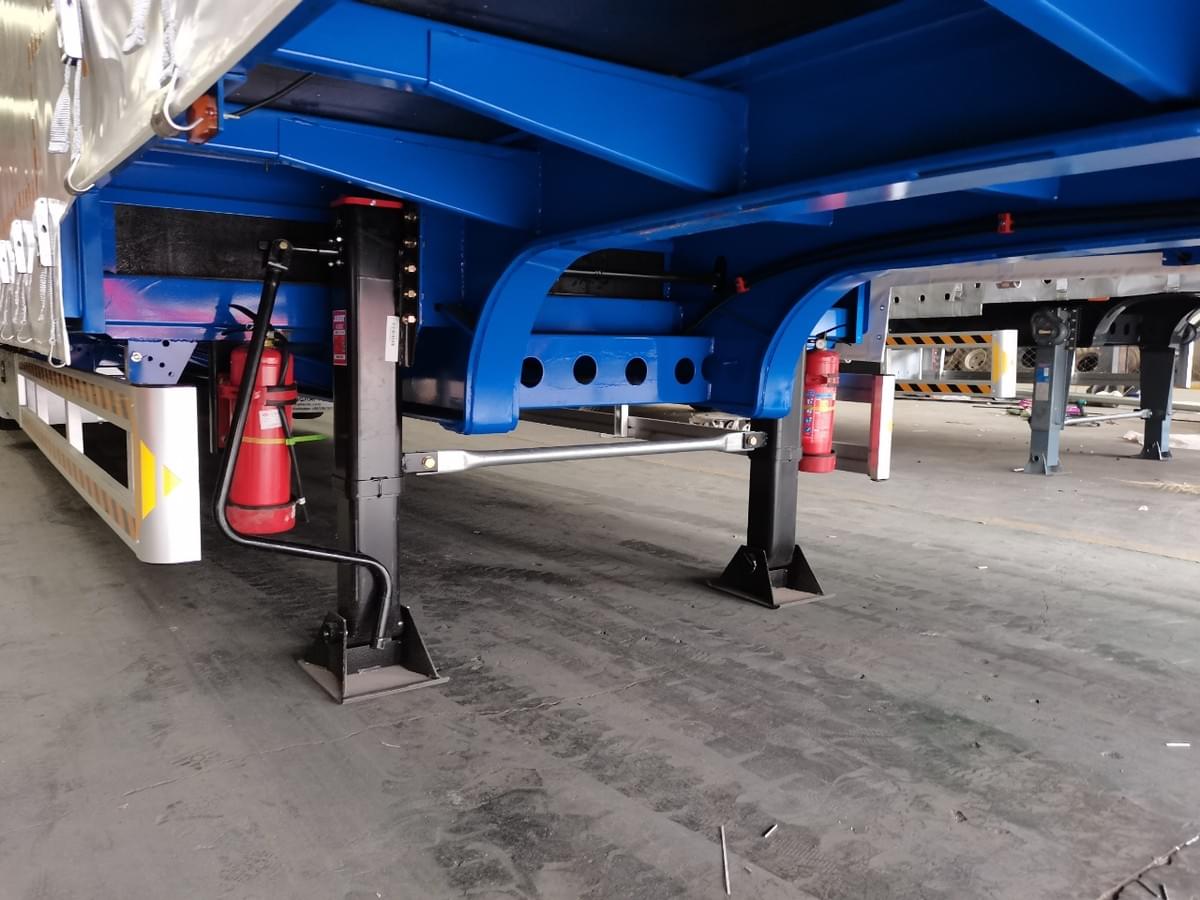

JOST linkage outriggers
Wooden floor
Steel front door
Aluminum alloy rear door
Aluminum frame
Capacity: 34 tons
8 container accessories
One spare tire rack
Two spare tires
WABCO ABS
Two tool boxes
